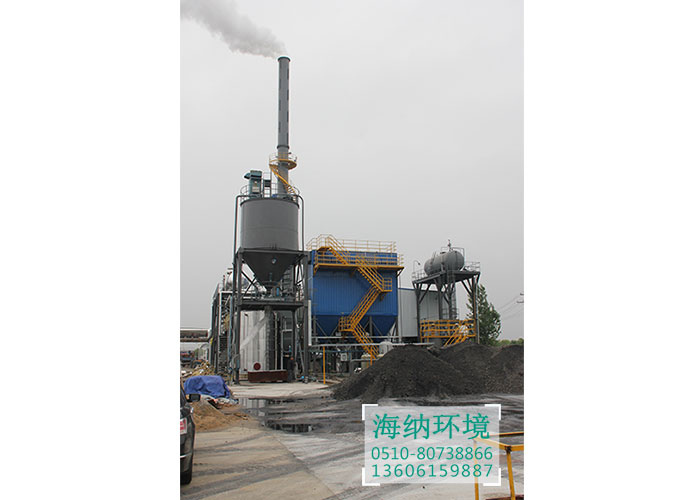

Project Name: 12 million project of dust removal, desulphurization and denitrification in large scale coal fired organic heat carrier boiler
System configuration: pulse bag filter + low temperature ozone oxidation denitration + desulfurization spray tower.

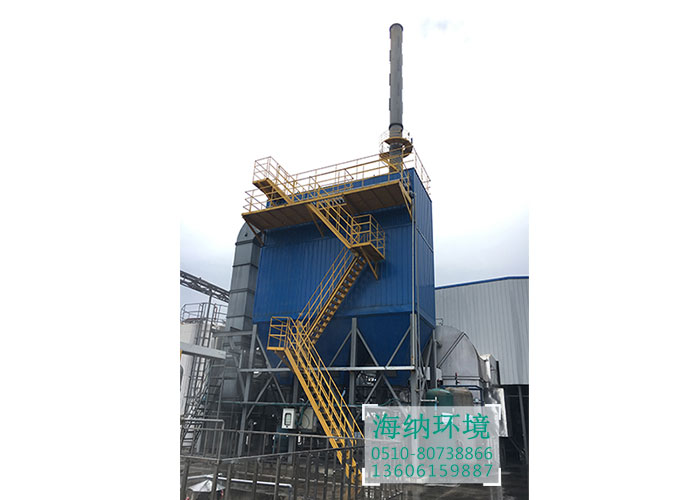

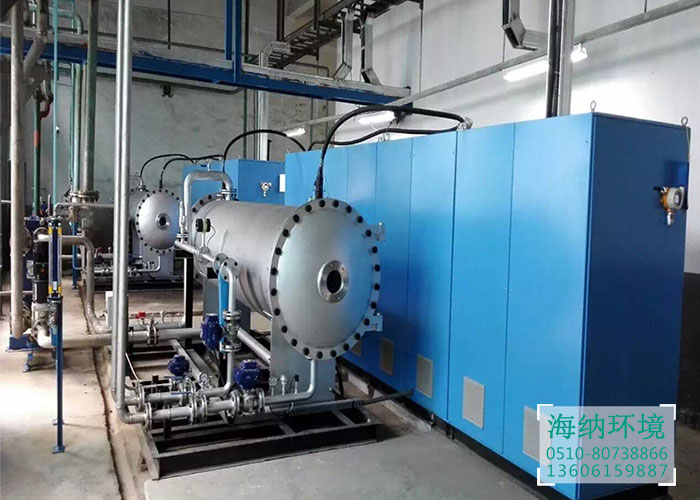

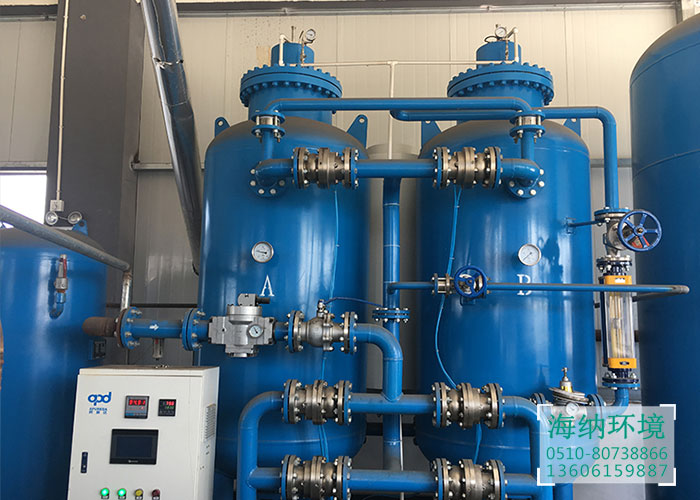

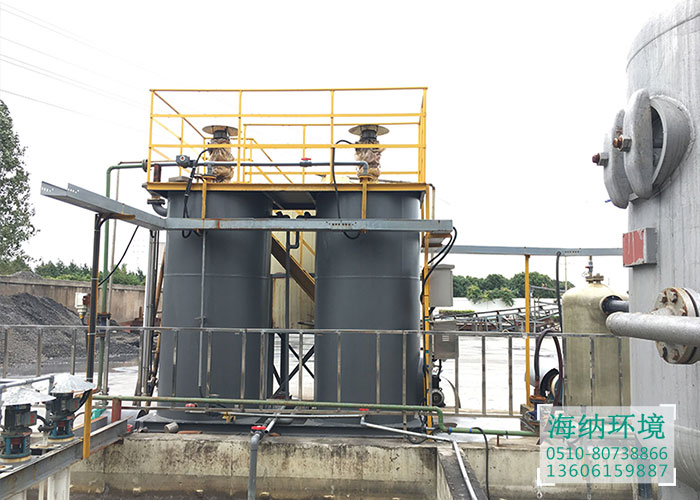

Brief introduction of the project: a food additive Co. Ltd. in 2016 built a 12 million kcal coal fired organic heat carrier boiler. In order to adapt to the latest environmental protection requirements, our company designed the environmental protection equipment: fixed line blowing pulse bag dust collector duster (supporting pneumatic conveying system), low temperature ozone oxidation denitrification (air separation +10kg/h ozone generator), desulfurization spray tower (smoke tower combined structure), desulfurization process: sodium alkali desulphurization.
After the completion of the project, the dust is less than 15mg/Nm3, SO2 is less than 20mg/Nm3, NOX is less than 100mg/Nm3, meeting the latest requirements of local environmental protection.
